Aging Oven

It is applicable to testing the changes in materials such as leather, plastic, rubber, cloth, etc before

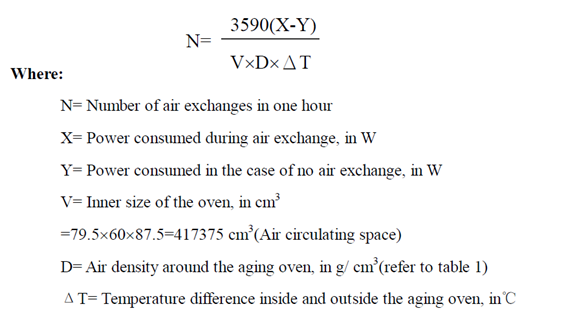

or after being heated. The ventilation rate is calculated via the difference between the power consumptions before and after air exchange. Specimens are heated uniformly at a controlled temperature for a specified time. The properties such as discoloration, split, shrinkage, expansion, residual ratio, etc are then measured so that the aging characteristics can be determined
Aging Oven


規格 Specifications
型號 ModelW-9046AW-9046B
內箱尺寸
Interior size (WxHxD)
45x45x45 cm60x60x60 cm
溫度範圍
Temp. range
RT~200°CRT~300°C
溫度波動度
Temp. fluctuation
±0.3°C
溫度均勻度
Humid. uniformity
±1.0°C
迴轉速度
Rotation speed
5~10 rpm
換氣率
Ventilation rate
1. 1~10 times/ hr
2. 10~200 times/hr (optional)
配件 Accessories
  1. Rotation shelves 2 layers 旋轉盤 兩層
  2. Shelves 2 sets 隔層網 兩只
  3. Watt meter 瓦特計
  4. Timer 計時器
選配 OptionalRecorder 紀錄器
電源 Power1Ø 220V 50/60Hz
