| 規格 Specifications | |||||
| 型號 Model | W-9045A-DL3 | W-9045A-TL3 | W-9045A-FL3 | W-9045A-SL3 | |
| • | 系統 System | 平衡調溫調濕控制系統 Balanced Temperature & Humidity control system | |||
| • | 內箱尺寸 Interior size (WxHxD) | 60x85x80 cm | 100x100x80 cm | 100x100x100 cm | 100x150x100 cm |
| • | 溫度範圍 Temp. range | -30~100 °C (+150°C optional) | |||

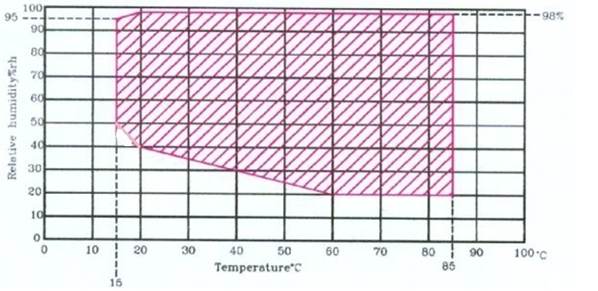

| • | 濕度範圍 Humid. range | 15~98% R.H | |||
| • | 溫度波動度 Temp. fluctuation | ±0.3°C | |||
| • | 濕度波動度 Humid. fluctuation | ±2%RH | |||
| • | 溫度均勻度 Humid. uniformity | ±1.0°C | |||
| • | 濕度均勻度 Humid. uniformity | ±5%RH | |||
| • | 升溫時間 Heating up time | +20°C~+100°C, approx 35 min. | |||
| • | 降溫時間 Cooling down time | +20°C to 0°C within 20 min. | |||
| • | 內箱材質 Interior material | 不鏽鋼四號沙面光板 SUS#304 stainless steel plate | |||
| • | 外箱材質 Exterior material | 不鏽鋼四號沙面光板 SUS#304 stainless steel plate | |||
| • | 保溫材質 Insulation material | 硬質PE發泡及玻璃棉 Rigid polyurethane foam & glass wool at 150°C | |||
| • | 冷凍系統Refrigeration system | 氣冷式Air cooled 雙段式，全密閉式壓縮機 hermetic compressor, dual stage refrigeration system | |||
| • | 保護裝置 Safety devices | 無熔絲開關，壓縮機過載保護開關，冷媒高壓保護開關，超高溫保護開關，保險絲，水盤缺水保護開關，電磁保護開關，故障警告系統 no fuse breaker, refrigerator overload relay, refrigerator high pressure switch, over-temp. protector, protection fuse, water level protector, protection relay, system trouble monitor alarm | |||
| • | 配件 Accessories | 視窗，上下可調隔板兩片，測試孔Ø50mm，室內燈 viewing window, shelves (freely adjustable 2 pcs), cable port (50 mm dia.) and chamber lamp | |||
| • | 體積 Dimension | 133x107x178 cm | 173x107x188 cm | 173x127x188 cm | 180x145x188 cm |
| • | 電源 Power | 1Ø 220V 50/60Hz or 3Ø 220V/380V/415V/440V 50Hz | |||
